The case for rejecting the memristor as a fundamental circuit element

The periodic table of fundamental passive elements

The periodic table in Fig. 2 has rows and columns of the grid labeled in upper case alphabets along the left and top edges. We will address a grid by its (row, column) label. The actual electrical variable that applies to each row or column is shown along the right and bottom edge. On the horizontal axis each column to the right is a time derivative of the one on its left. For example the x axis of (A, Y) is (dot{varnothing }) which is the derivative of ϕ, the x axis of (A, Z). Similarly along the y axis, each higher row’s y axis is the derivative of the one below it.

Figure 2
Figure 2

The periodic table of fundamental passive elements in the charge-voltage domain.

Existing fundamental elements satisfy the following rules. We expect the same compliance from the memristor.

  1. (i)

    Rule 1: Only one fundamental element can occupy a slot in the periodic table.

  2. (ii)

    Rule 2: A transient event will not count as satisfying a constitutive relationship.

Rule 1 takes guidance from the periodic table of chemical elements which organizes elements based on atomic number. The periodic table of electrical elements organizes its elements based on the nth derivative of charge that relates the phenomenological constant to the voltage developed across the device.

Rule 2 is inferred from the definition of existing fundamental elements namely C, R and L.

Locating the fundamental elements

The known fundamental elements from the preceding discussion appear along column Y rows A, B and C. This placement was done by comparing the governing equation of the slots to the governing equations in our earlier discussion. Moving into column X, slot (A, X) is empty because there is no known element that satisfies its rule. Slot (B,X) satisfies the derivative based definition of a capacitor namely (Cfrac{dnu }{dt}=i) or the form that maps to our periodic table ({C}^{-1}dot{q}=dot{nu }). Similarly in column X, we observe that (C, X) is (r,ddot{q}=dot{nu }) which is the small signal definition of a resistor, equivalent to (r=frac{dnu }{di}). Inspection shows that each of the known fundamental elements travels along diagonals in our periodic table, leading to the nth derivative representation in terms of charge and voltage.

The thick vertical separator between columns Z and Y reinforces the idea that fundamental elements do not percolate into column Z. Columns to the right of Y contain derivatives of the governing equations from Y and do not constitute a fundamental definition because they are just mathematical operations. If there is place for a new fundamental element, it would be slot (D, Y) with a governing relation (U,dddot{q}=nu ), equivalent to (nu =Ufrac{{d}^{2}i}{d{t}^{2}}), where U is some yet to be discovered phenomenological constant. However, we will demonstrate later that an occupant of (D, Y) will be active, hence neither passive nor fundamental.

Before discussing column Z, let us review the governing equation that relates voltage to magnetic flux; namely Faraday’s law. Faraday’s law states that the negative of the rate of change of magnetic flux (({varnothing }_{B})) will be equal to the electric potential () developed in the element, such as an inductor.

$${epsilon }=-,frac{d{varnothing }_{B}}{dt}$$


Assume that the experimenter is forcing a change in magnetic flux. The negative sign implies that the resulting voltage will be in such a direction as to generate a current whose magnetic field will try to oppose the forcibly induced change in flux. The equation is intended for use in a situation where the flux is truly a magnetic flux. However we notice that we could integrate the left hand side of equation (1) to result in (varphi =-,int {epsilon },dt) without insisting on a magnetic field. We have used ϕ without the subscript to denote the computed flux rather than the real magnetic flux. While this approach is mathematically correct, it gives rise to a possible misuse of the term flux. The 1971 postulate vacillates by employing both ϕ (time integral of voltage) and the words flux-linkage (used therein seven times), suggesting that the originally postulated memristor concept did indeed hinge on the existence of magnetic flux5. Given that we already have a charge-voltage plane to inspect, let us accommodate the definition (varphi =-,int {epsilon },dt) and disregard the need for a magnetic flux.

This moves our discussion into column Z in Fig. 2. All elements along column Z generate flux (varphi =int nu ,dt). Here (nu equiv {epsilon }) and represents voltage (electric potential). The missing negative sign (w.r.t a magnetic context) only serves to dictate the direction of voltage and there is no loss of accuracy for the discussion by leaving it out. Of the three known fundamental elements, only the inductor and resistor appear in column Z. As for the capacitor, we could mathematically write (varphi ={C}^{-1}int q,dt) and be correct. However this would put us in a meaningless slot below (A, Z). In this system with passive elements, the capacitor did not make it into column Z because charge on a capacitor cannot be meaningfully transformed into the integral of voltage. This example with the capacitor shows how to create an infinite grid periodic table.

Turning our attention to slot (A, Z), the generalized governing equation is (U,q=varnothing ). We have temporarily introduced the phenomenological constant U to stand in for what we might discover. Simple transposition gives (U=frac{varnothing }{q}). We can rewrite this based on its time derivative form where the over-dot represents derivative w.r.t time.

$$U=frac{dot{varnothing }}{dot{q}}=frac{dvarphi }{dq}=frac{nu }{i}$$


Equation (2) defines the resistor, making U in (A, Z) equal R as shown in Fig. 2. Prodromakis et al. among others use the intermediate expression ((frac{frac{dvarnothing }{dt}}{frac{dq}{dt}})) containing the reference to charge, to suggest that U = M = M(q(t))6. There are two uncomfortable issues here.

  1. (i)

    While the inference is not wrong, it violates Rule 1 because the simple resistor will also suitably occupy slot (A, Z).

  2. (ii)

    Any phenomenological constant inferred from time dependent intermediate equations is tenuous and violates Rule 2.

Comparison with Strukov’s table of fundamental elements

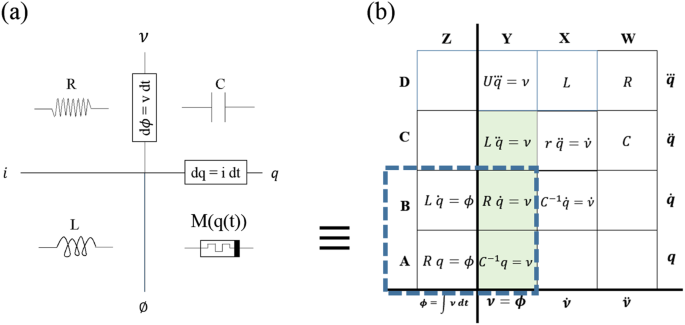

Figure 3 compares the periodic table of fundamental elements published by Strukov et al. at Hewlett Packard (HP) with that proposed by this paper7. We see that a left ninety degree rotation on the grid (A, Z)-(B, Y) in Fig. 3(b) definitely makes it resemble Strukov’s chart. There is a mistake in that original chart of fundamental elements7,8,9. The framed expression on the positive x axis, dq = idt conflicts with the positive x axis being simultaneously labeled q. Algebraic manipulation of the framed expression gives (frac{dq}{dt}=i); implying that current equals the charge label along the positive x axis. This may be a typographical error and is not observed to have affected any inferences because the expression is always overlooked. Nalawade et al. have corrected this but manage to label the flux axis incorrectly10. Kvatinsky et al. simply retain the empty frames11. Kumar has correctly labeled the chart’s axes in a review12.

Figure 3
Figure 3

Chart of fundamental passive elements in the charge-voltage domain. (a) Strukov’s interpretation attributed to Chua. (b) Our representation shows Strukov’s chart as a subset enclosed within the blue dashed rectangle.

From the side by side comparison in Fig. 3, we observe that the lower part of Strukov’s chart maps to our column Z in Fig. 3(b). Occupants of column Z are not fundamental because their relationships are defined by mathematical integration, requiring initial conditions. Even if we allowed such elements into the fundamental fold, the position proposed for the memristor is already occupied by the resistor.

The charge-voltage plane is sometimes referred to as the charge-flux domain, which is just the same as Fig. 2, including the forbidden column Z. The memory resistor of 2008 with its phenomenological constant M, does not find a place in the charge-voltage plane because of the following two reasons.

  1. (i)

    Slot (A, Z) is already occupied by the resistor. Rule 1 prohibits a second occupant.

  2. (ii)

    A memristor with (M(q(t))=frac{varnothing }{q}) can only be evaluated by integration, violating Rule 2 by requiring a time-window for the integral.

The circuit-theoretic periodic table of passive elements

A moving charge generates a magnetic field. Ampere’s law can be used to deduce that a current carrying wire will produce magnetic field lines perpendicular to the wire, in the direction suggested by the right hand rule. This means that Fig. 1(b) and (c) have magnetic contributions as marked by the dashed curved arrows. This motivates us to expand the periodic table of fundamental elements into the magnetic plane.

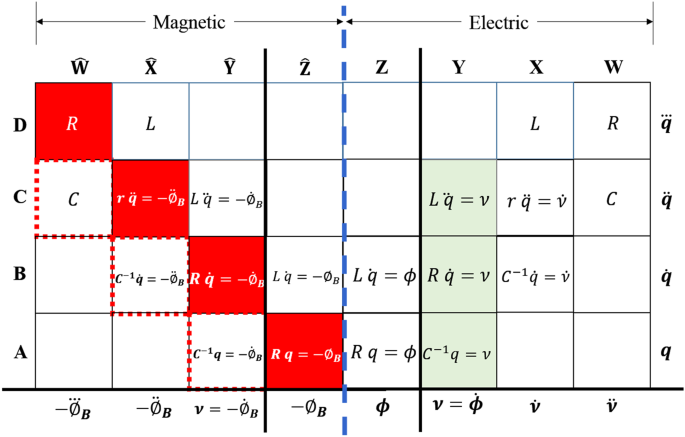

Figure 4 is the extended version of Fig. 2, with the charge-voltage plane to the right of the dashed blue center spine and the charge-flux (magnetic) plane to the left of the dashed blue center spine. The flux on the magnetic side is the true magnetic flux represented by ϕB. Charge and its derivatives are along the y axis. The columns are labeled with hats on the magnetic side; row designators are shared among both domains. Discussion will address slots in (row, column) style. All devices within columns Z and (hat{{rm{Z}}}) needed initial conditions to be specified to their derivative forms from Y and (hat{{rm{Y}}}). To the left of center, each column leads into the nth derivative of the true magnetic flux. To the right, each column similarly leads to the nth derivative of computed flux, defined as the integral of voltage w.r.t time. Fundamental elements are in light green boxes that represent their constitutive relations. We start the discussion with the well-known candidates.

Figure 4
Figure 4

Periodic table of fundamental elements in the charge-flux (magnetic) and charge-voltage domains.

The capacitor from the charge-voltage plane does not make an appearance on the magnetic side because there is no magnetism involved for stationary charges. This automatically eliminates all the magnetic diagonals with capacitance C, like (({rm{A}},hat{{rm{Y}}})), (({rm{B}},hat{{rm{X}}})), (({rm{C}},hat{{rm{W}}})) and so on shown in red dotted boxes.

With respect to inductors, we notice immediately that the inductor exists as it should in slot (({rm{C}},hat{{rm{Y}}})). The inductor continues into slot (({rm{B}},hat{{rm{Z}}})), crosses into the electric domain at (B, Z) and further into slot (C, Y). The inductor can live in both planes. An inductor generates a voltage proportional to the rate of change of current.

The inductor also creates a true magnetic field around the coils for alternating current conditions in (({rm{C}},hat{{rm{Y}}})).

$$-{dot{varphi }}_{B}=L,ddot{q}$$


Under direct current conditions, the inductor satisfies the following relationship in (({rm{B}},hat{{rm{Z}}})) and (B, Z).

$$-{varphi }_{B}=L,i=varnothing $$


We recognize that (({rm{B}},hat{{rm{Z}}})) is a one way relationship where a constant current can produce a constant magnetic field but not vice versa. Similarly (L,i=varnothing ) in (B, Z) requires integration. Therefore equation (5) is not the constitutive relation for an inductor. Equation (4) from slot (({rm{C}},hat{{rm{Y}}})) or equation (3) from (C, Y) is the true constitutive relation for the inductor because it alone describes the ability of the inductor to bridge the magnetic and electric domains2,3.

Let us now presume that the original postulate about a magnetic memristor is true. This will mean that the device should occupy slot (({rm{A}},hat{{rm{Z}}})) based on the constitutive relation (M=-,frac{{varnothing }_{B}}{q}), with proper sign and subscripting. At this point we don’t have enough data to contest this existence. We know from the loci of fundamental elements, that an incumbent in (({rm{A}},hat{{rm{Z}}})) must also live in (({rm{B}},hat{{rm{Y}}})). The governing equation for slot (({rm{B}},hat{{rm{Y}}})) is (U,dot{q}=-,{dot{varphi }}_{B}). This rule requires that there is some device with phenomenological constant U which will produce a magnetic field that changes at a constant rate when a constant current ((dot{q})) is passed through it. Consider the 2008 HP (or 1971 Chua’s) memristor for this slot. Pushing a constant current into the memristor will cause the voltage across the device to change ((dot{v})) as its resistance changes. The constant stimulus current will however only create a constant magnetic field, definitely not (-{dot{varphi }}_{B}). Therefore the 2008 HP (and 1971 Chua’s) device cannot occupy (({rm{B}},hat{{rm{Y}}})) except for the trivial condition (-{dot{varnothing }}_{B}=0). A resistor also satisfies this trivial condition. Let us try to derive the rule for the observed (dot{nu }) from basic laws. Differentiating Faraday’s law w.r.t time gives (frac{d}{dt}{epsilon }=-,frac{d}{dt}(frac{d{varphi }_{B}}{dt})), which is (dot{nu }=-,{ddot{varphi }}_{B}). We see (-{ddot{varphi }}_{B}) in slot (({rm{C}},hat{{rm{X}}})). This requires a device to generate a rate of rate of magnetic flux when a rate of current passed through it i.e. (rfrac{di}{dt}=-,{ddot{varphi }}_{B}=frac{dv}{dt}). In other words, pushing a rate of current into the device should result in a rate of change of voltage (dot{nu }); which will occur across the 2008 HP and 1971 Chua’s devices. However, the change of voltage is only momentarily nontrivial and will evaluate to zero as soon as the transition from low to high resistance (or vice versa) is over; making this a transient event and violating Rule 2. Therefore there is no place in (({rm{C}},hat{{rm{X}}})) for the 2008 (or 1971) memristor. By inference, if (({rm{C}},hat{{rm{X}}})) and (({rm{B}},hat{{rm{Y}}})) are devoid of memristors, then (({rm{A}},hat{{rm{Z}}})) is also forbidden to the memristor. Additionally, there is no incumbent possible in (({rm{A}},hat{{rm{Z}}})) because stationary electric charges cannot produce a magnetic field. Thus we have colored all the excluded squares of the periodic table in red, eliminating the 2008 HP (and 1971) device from the magnetic plane. Proposing that q in (({rm{A}},hat{{rm{Z}}})) is the integral of current and not a literal stationary charge, puts us in the realm of abstraction-by-integration. Then the memristor is an abstract device that responds to an abstract electric charge. In any case, a resistor already satisfies the conditions of (({rm{A}},hat{{rm{Z}}})) even in this realm of abstraction.

Can the 1971 postulate be probable anywhere in the magnetic side? The loci of fundamental elements suggests that nothing other than a form of resistor can occupy the trajectory (({rm{A}},hat{{rm{Z}}})), (({rm{B}},hat{{rm{Y}}})), (({rm{C}},hat{{rm{X}}})), (({rm{D}},hat{{rm{W}}})) etc. proposed for the memristor. The memristor in any manifestation is therefore excluded from the magnetic and electric side of the periodic table by Rule 1 and/or Rule 2.

General opposition to the memristor concept

Vongehr et al. point out the problems with mixing ϕB and ϕ13. For them, the absence of magnetism in the 2008 HP model is its primary disqualifier and opine that if the memristor sans magnetism is valid, then we have also discovered an inductor that works without magnetism. Di Ventra and Pershin interpret mem-devices as response functions. They offer the possibility of obtaining current-voltage curves that do not cross the origin14. This is at odds with Chua’s definition which says that if its pinched it’s a memristor15. Chua states very clearly that “In this paper any two terminal black box is called a memristor if, and only if, it exhibits a pinched hysteresis loop for all bipolar periodic input current signals (resp., input voltage signals) which result in a periodic voltage (resp., current) response of the same frequency, in the voltage–current (v − i) plane”15. Sundqvist et al. study the memristor with thermodynamics considerations and conclude that the memristor equations are physically incomplete w.r.t to passivity or activity16,17. They object to the claim that the existing contender for the memristor is a passive device because it violates the second law of thermodynamics in an infinitely large number of cases while no positive example can be identified due to the unphysical character of Chua’s fundamental memristor definition. Similar criticisms about violation of Landauer’s principle, the absence of magnetic flux, changing definitions etc. are presented by Jeltsema18. The common denominator for objections converges on the absence of magnetism and the likely need for active elements to be present.

The linear-nonlinear debate

The notion that the memristor postulated in 1971 may somehow exist as a nonlinear yet fundamental entity can be dispelled by reviewing Chua’s seminal paper. Section III of Chua’s paper states that when the memristor ϕq curve is a straight line, the memristor reduces to a linear time-invariant resistor; very much in keeping with our findings in the prior sections5.

Now consider the nonlinear case. Chua states that “…only memristors characterized by a monotonically increasing ϕq curve can exist in a device form without internal power supplies.” A nonlinear ϕq curve will always have a positive, albeit variable slope. However, the ratio of ϕ to q still has the units of ohm, without a phase shift, making this a nonlinear resistor. Simple pn diodes or transistors as shown in Table 1 can emulate nonlinear resistors. In the context of the three known fundamental devices, Tour et al. state that “The behavior of each of these elements is described by a simple linear relationship…”, clearly affirming that linearity is central to being fundamental8. Nonlinear resistors are not fundamental because they can be modeled by an assembly of piecewise linear components.

The report from Di Ventra et al. and general modeling knowledge shows that only an active element can produce a negative differential resistance (NDR) which is seen in the memristor current-voltage curves14. NDR eliminates the nonlinear passive diode from being able to model the memristor, leaving active circuits as the only option to model memristors.

Let us review the memristor in the light of Strukov’s expression for the phenomenological constant (M(q(t))=frac{varnothing }{q}). When M(q(t)) is a positive constant and (frac{d}{dq}M(q(t))=0), then the device is a linear time-invariant resistor which is the already known fundamental element R. All other cases are at the very least nonlinear and excluded from being fundamental. By virtue of nonlinearity and ignoring any activity criterion, the memristor should occupy (C, X) in Fig. 4.

The suggestion that a circuit element can be a fundamental passive by virtue of nonlinearity is fallacious. If this were true, then the small signal resistor r in (C, X), which could represent a passive diode, would also be a fundamental element. Even if we choose to henceforth recognize nonlinear passive devices as fundamental in some “expanded design space” as suggested by Williams et al., (i) the memristor cannot occupy (A, Z) or (({rm{A}},hat{{rm{Z}}})) because those slots are occupied by the linear resistor and (ii) the memristor cannot occupy (C, X) because in the current-voltage domain the device exhibits hysteresis – an active phenomenon, thereby excluding it completely from any table of fundamental passive elements5,7,19. Slot (({rm{C}},hat{{rm{X}}})) was rejected in previous discussion.

Extending the scope of the periodic table

With a well-developed tabulation of concepts in Table 1, a periodic table and two concise rules at our disposal, we are well equipped and inclined to review other forms of devices like the flux controlled inductor, charge controlled capacitor etc.

For example, consider a device that satisfies the relation (i=f({varnothing }_{B})) where we are assuming that flux B is magnetic flux. Any inductor will develop a voltage across the device terminals with constitutive relation (Lfrac{di}{dt}=nu ) in (C, Y). Substitute for i in the constitutive equation, after generalizing all quantities to be dependent on flux. We get (L({varnothing }_{B})frac{d,f({varnothing }_{B})}{dt}=nu ({varnothing }_{B})), therefore (L({varnothing }_{B})=frac{nu ({varnothing }_{B})}{dot{f}({varnothing }_{B})}). The device is fundamental iff L(B) is a positive constant and (frac{d}{d{varnothing }_{B}}L({varnothing }_{B})) is identically zero. All other cases with positive non-zero slope are nonlinear and fit into slot (D, X) which is the small signal definition of the inductor stated as (frac{d}{dt}nu =Lfrac{{d}^{2}}{d{t}^{2}}i).

As another example, consider a device with ν = g(q). All capacitors respond to charge and produce a voltage according to  = q. Reformatting the constitutive relation to fit our test case, we have C(q)g(q) = q. Transposing, (C(q)=frac{q}{g(q)}). The device is fundamental iff C(q) is a positive constant and (frac{d}{dq}C(q)) is identically zero. All other cases with positive non-zero slope are nonlinear and fit into slot (B, X) which is the small signal definition of the capacitor namely (frac{d}{dt}nu ={C}^{-1}frac{d}{dt}q).

In retrospect, we observe that column X contains the small signal representation of fundamental elements, just as column Y alone contains the constitutive relations of fundamental elements.

What is Chua’s or HP’s memristor

If the memristor is not fundamental, then we strive to understand what it is. The first evidence is the original model from HP. It looks like a potentiometer made of two resistors and a slider7. The slider must be moved as a function of time to make the device transition between the low and high resistance states. In spite of the many shortcomings of the HP model it captures the essence of the memristor – a two terminal series connection of resistors with a low resistance RLO and high resistance RHI, exhibiting NDR. While Di Ventra et al. argue that a negative resistance can only ensue from an active element, the memristor community does not readily equate NDR with the presence of an active element14. Through the clever use of window functions that are arbitrarily introduced into equations, HP hides the presence of active elements in their memristor model. After all, a potentiometer has no inherent hysteresis.

An original research in symbolic modeling has revealed two impedances that torsion in the complex plane20,21. That approach proposes the logistic function as the solution to a variable coefficient Burgers’ equation. The Burgers’ model reveals the memristor as the sum of a real and negative impedance; where the reactive components always sum to zero. The complex resistors have the form ({R}_{1}=pm ,amp j,b) and ({R}_{2}=mp ,cpm j,b), where the positive term from among a, c is always larger. Therefore the composite resistance is always positive. The model unambiguously reveals the presence of a non-dominant negative resistance. It is possible to associate the negative impedance with a shockwave that Tang et al. have deduced22. The negative resistance is not visible to an external observer except during transition and is indispensable for representing flux dependent hysteresis which is key to memristor functionality. Without hysteresis, memristor current-voltage curves cannot exhibit lobes. The current-voltage curve with pinched hysteresis is a signature of the memristor15. Abraham’s symbolic model generates traditional current-voltage curves and exhibits a reasonable match to empirical switching time data21. The said model has also been demonstrated to exhibit correct temperature dependence w.r.t empirical data20.

Vacancy migration in a memristor is like the bubbles in a glass analogy by Williams, or rather like the behavior of devices with space-charge limited currents where the thermal relaxation time-constant of the space-charge is long19. The resulting boundary between the low and high vacancy concentration regions in the memristor emulates the slider of a rheostat, partitions the device into two (series) resistors and implements (active) hysteresis. Hysteresis is acknowledged by many authors including Chua, Williams, Strukov and Biolek5,7,15,19,23. Hysteresis can be implemented in circuit with the operational amplifier, Schmitt trigger or voltage/current-controlled elements – all of which are active.

The Chua Memristor Center’s website claims that Corinto et al. have constructed a memristor model with one port passive components24,25. This is impossible if the memristor is a fundamental element. Another peer reviewed publication associated with the circuit replaces the purported passive resistor with a Chua’s diode; which is a locally active device26. Local activity implies a negative resistance27. Memristor modeling has always needed active elements because it is implicitly active5,28,29.

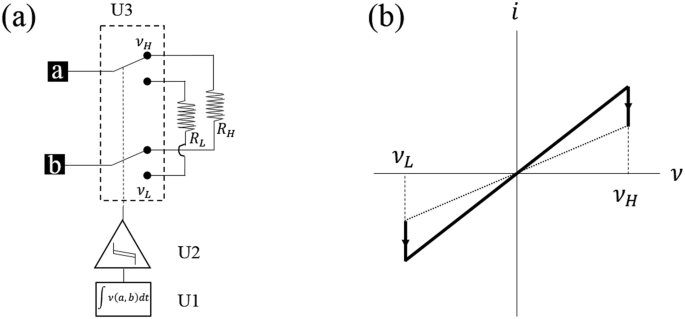

In Fig. 5 we model the memristor as two resistors selectable with a double pole double throw switch U3 controlled by the hysteresis generator U2. The device terminals are a and b. The VTEAM model has a positive and negative threshold which could be produced by U230. Integrator U1 computes flux. The hysteresis generator U2 is the unavoidable active component.

Figure 5
Figure 5

Memristor circuit model with flux based hysteresis. (a) Hysteresis is necessary to correctly select the low or high resistance at a predetermined flux threshold. (b) Current-voltage curve with hysteresis marked in the voltage domain.

The Chua Lectures, Part 3 demonstrates that the ideal memristor will draw infinite current (i(t)={3nu {(varnothing (0)+nu t)}^{2}|}_{tto infty }to infty ) for any non-zero voltage stimulus. The square law relationship w.r.t time hints at an unphysical active element31. This is remarkable because none of the other three fundamental elements are unphysical. A device with (i(t)propto {t}^{2}) could in theory occupy (D, Y) in Fig. 4. The “Locating the fundamental elements” section had suggested that (D, Y) may harbor a new fundamental device. Our mystery device could in theory be multiplying two inductor currents, each of (i(t)={L}^{-1}nu ,t). Multiplication however requires active elements thereby eliminating passive devices from ever occupying (D, Y). Therefore the set of fundamental elements is strictly limited to C, R and L along ([A, B, C], Y) in Fig. 4.

We summarize our findings in Table 2 where we list each fundamental element and its constitutive relation in the electric and magnetic planes. The variable ν represents voltage (V) and ϕB represents true magnetic flux in weber (Wb). Referring back to Fig. 4, we observe that in the electric domain, voltage is the measureable quantity that is generated across the terminals of fundamental elements in column Y. By virtue of symmetry, rate of change of magnetic flux (-{dot{varphi }}_{B}) is the only measurable quantity that should help locate a fundamental element in the magnetic domain in column (hat{{rm{Y}}}).

Table 2 Table of constitutive relationships for fundamental elements.
